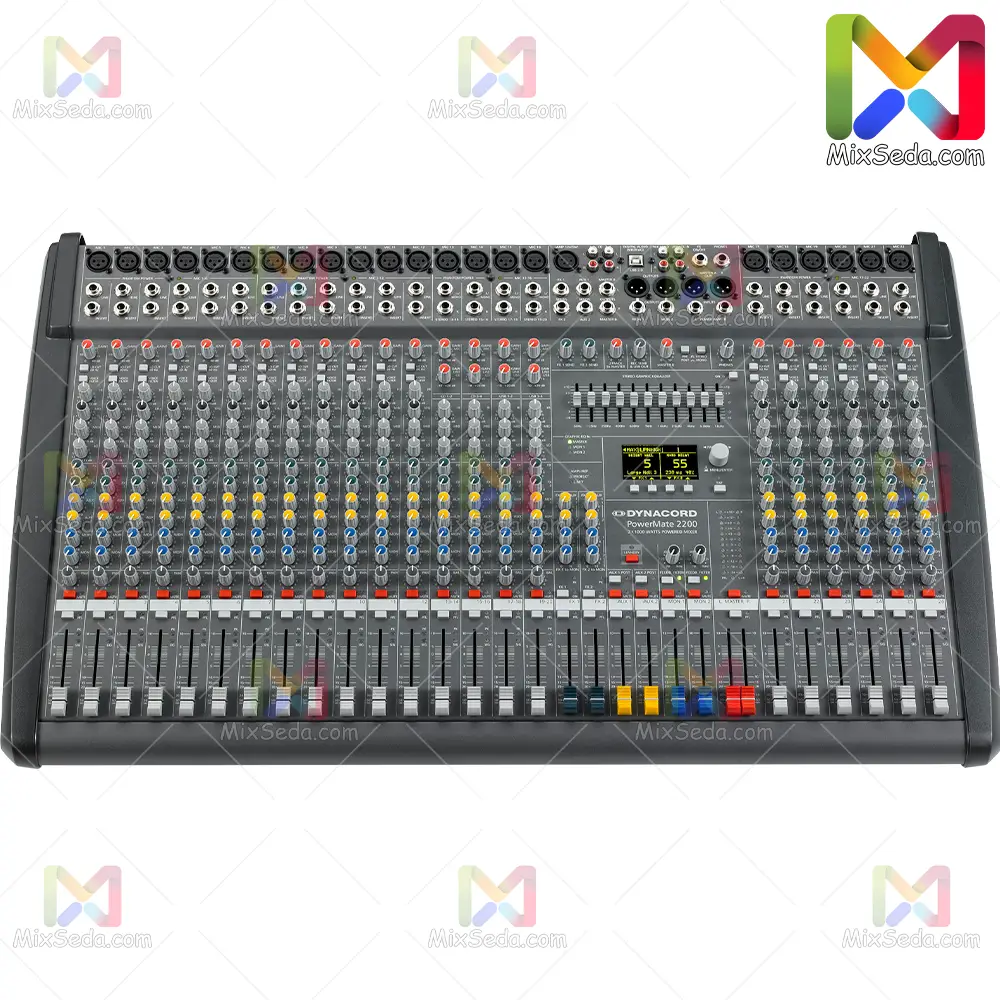

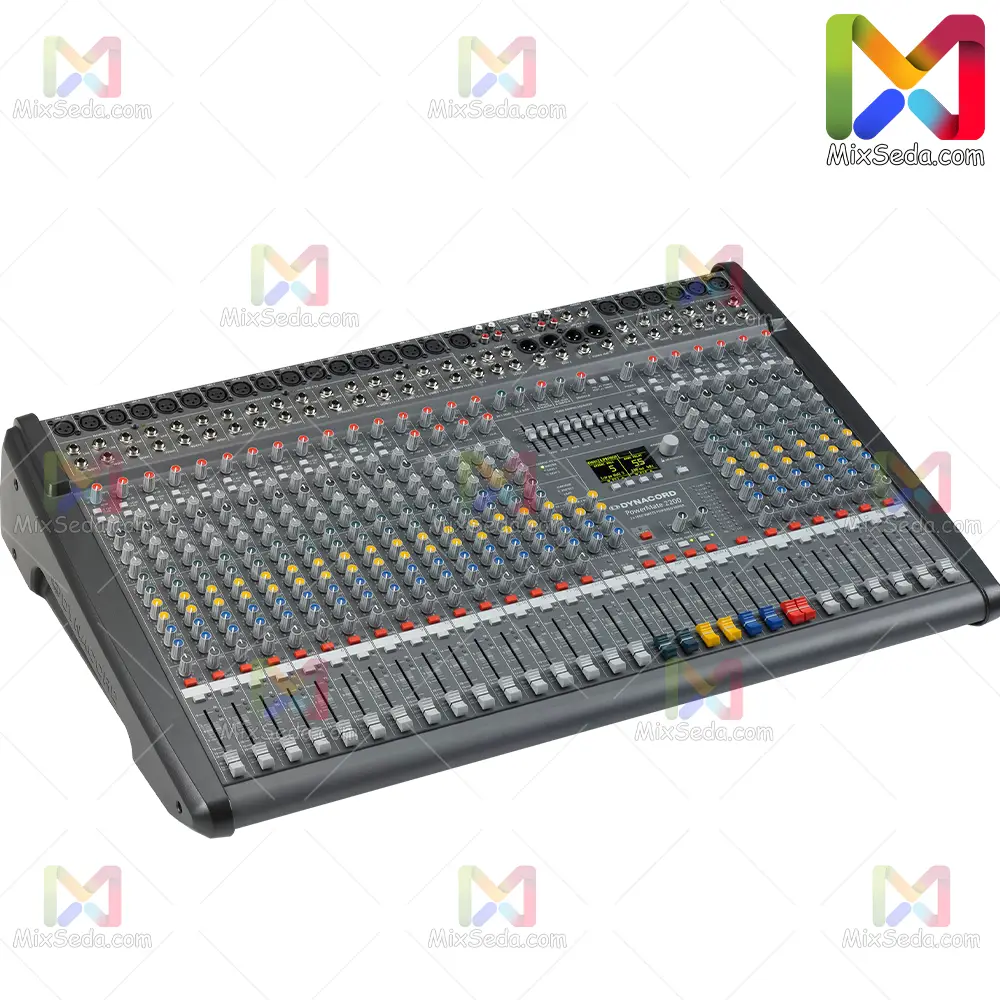

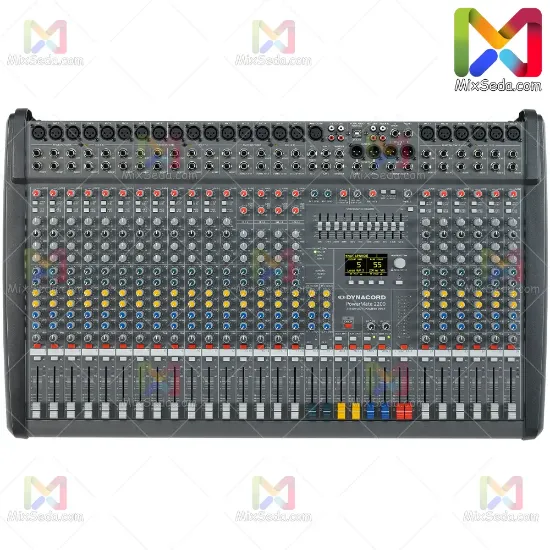

Dynacord PowerMate 2200-3 Dynacord power mixers have twenty-two input lines.
They also have two digital effects, the circuitry of each of which is completely separate and independent from the other.
Each of these digital effects has 100 predefined and preprogrammed effects that the sound engineer can create the desired effect by editing any of these 100 patterns.
There is also the possibility for the user to store 20 effect templates with the desired name and in fact editing the same 100 predefined effect templates in the device.
Dynacord PowerMate 2200-3 Effects Mixer
Information on the effects of Dynacord devices; All CMS 2200-3, CMS 1600-3, CMS 1000-3 CMS 600-3, PM 600-3, PM 1000-3, PM 1600-3 and also the PowerMate 2200-3 itself have an effects circuit type And the type of effects and how the effects are stored in them is no different.
PowerMate PowerMate 2200-3 mixer
The output power of the amplifier of this model is 1000 real watts (RMS) with an impedance of 4 ohms on two channels, which also has 6 auxiliary line outputs.
Features include an eleven-band stereo equalizer and four inputs from a USB port.
Welcome to the Dynacord PowerMate 2200-3 power mixer
As for this mixer, I can say that this mixer is not as popular in Iran as the 3-1000 and 3-1600 versions, because other mixers are usually used for professional work, such as Maidas mixers for sound mixing, and for ordinary work, Versions 1000 and 1600 are used.
Furthermore, the price of this mixer is higher than the previous two versions and, except for the number of lines, no new features have been added to this mixer.
Another reason is that this device is heavier and cannot be easily carried or moved.
Of course, the fact that there are more lines makes it easier for the user to work with the mixer.
22‑channel compact power‑mixer
- Intuitive mixer with 22 input channels (18 Mic/Line + 4 Mic/Stereo-Line)
- Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
- 2 High-Quality editable effects, 100 factory and 20 user presets
- Professional 4×4 24-bit / 96 kHz USB interface with MIDI
The PM2200‑3 is the largest member of the PowerMate family. It is by far the most powerful and best equipped compact powered mixer on the market.
It incorporates not less than six dedicated audio devices into one compact frame: mixing console, two effects units, graphic equalizer, USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand‑alone device. The PowerMate is a real all‑rounder for almost all applications with maximum feature set at minimum size.
The mixing section starts with 22 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate‑reverbs. Further, each preset can be edited and stored to 20 User memories.
The built in USB audio interface shares 4 playback and four recording channels simultaneously with a PC or Mac, following studio standard 24‑bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.
The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.
The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class‑D output stage, it’s very efficient and lightweight, too. An optional speaker protection allows limitation of long‑term power without giving up dynamics.
